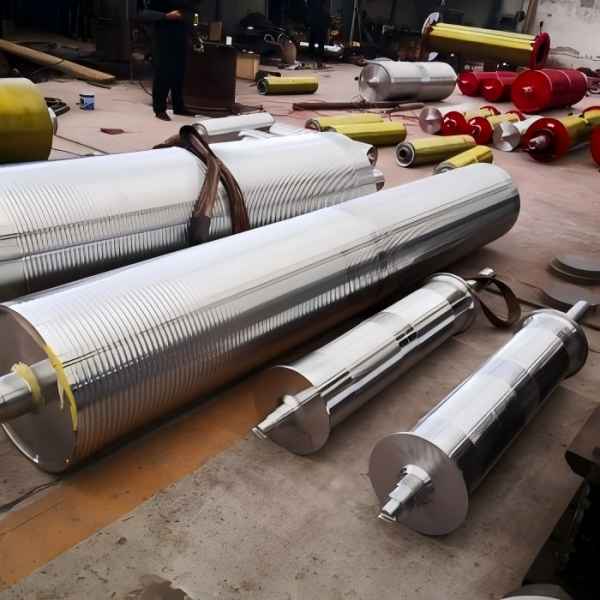

European crane drum

The European crane drum is one of the essential components in crane systems, typically used to wind and release the crane’s steel wire rope, playing a crucial role in lifting and controlling loads. It is one of the core parts of the crane’s hoisting mechanism and is widely used in ports, factories, mines, and construction sites.

Features of the European Crane Drum

1. Optimized Structural Design:
   European-style crane drums usually feature a compact and efficient design, making the drum smaller in size while maintaining strong load-bearing capacity. This design meets the European market’s demand for high performance and space utilization.
2. High-Strength Materials:
   The drum is typically made from high-strength alloy steel or other wear-resistant materials, ensuring excellent durability and a long service life under high load and frequent operation conditions.
3. Precision Manufacturing:
   The production of the European-style crane drum typically involves precision machining processes, ensuring a smooth surface that reduces wire rope wear and enhances operational stability.
4. Steel Rope Winding Mechanism:
   The drum design usually ensures uniform winding of the steel rope, preventing issues like knotting, crossing, or uneven winding, and minimizing the damage caused to the rope due to improper drum handling.
5. Double or Multi-Rope Drums:
   Some European-style crane drums are designed for double or multiple ropes, which increases the crane’s lifting capacity and improves performance.
6. Protective Features:
   The drum may be equipped with protective covers and lubrication systems, reducing wear and extending its service life.

Applications of the European-style Crane Drum

European-style crane drums are widely used in various types of cranes, such as bridge cranes, tower cranes, tire-mounted cranes, and ship cranes. Depending on the working conditions and requirements, the drum’s size, rope diameter, and load capacity can vary.

Key Advantages

• Space-Saving:
  Due to its precise design, the European-style crane drum is typically more compact than traditional crane drums, saving installation space.
• Improved Efficiency:
  The efficient design of the drum ensures smooth operation of the steel rope, reduces mechanical wear, and increases work efficiency.
• Strong Adaptability:
  It can handle a wide range of load requirements, making it suitable for various work environments.

In conclusion, the design of the European-style crane drum emphasizes a balance between performance and efficiency, providing more efficient, safer, and longer-lasting operational performance.

European crane drum a

Drum diameter	Drawing No.	D1	D2	M	P	R	S	L	L1	L2	L3	d	d1	d2
φ285	T1001	285	291	120	11	169.5	73	1130	73	63	328	95	300	190
φ360	T1002	360	370	190	15	218	67	1360	91	79	328	105	320	210
Φ360	T1003	360	370	80	15	218	67	2230	91	79	328	105	320	210
Φ435	T1004	435	447	80	18	262	103	2160	103	77	388	125	380	380
Φ435	T1005	435	447	80	18	262	103	3070	103	77	388	125	380	380
Φ600	T1006	600	614	100	22	362	113	2970	113	91	537	155	410	410

European crane drum b

Drum diameter	Drawing No.	D1	D2	M	P	R	S	L	L1	L2	L3	d	d1	d2
φ285	T1001	285	291	120	11	169.5	73	1130	73	63	328	95	300	190
φ360	T1002	360	370	190	15	218	67	1360	91	79	328	105	320	210
Φ360	T1003	360	370	80	15	218	67	2230	91	79	328	105	320	210
Φ435	T1004	435	447	80	18	262	103	2160	103	77	388	125	380	380
Φ435	T1005	435	447	80	18	262	103	3070	103	77	388	125	380	380
Φ600	T1006	600	614	100	22	362	113	2970	113	91	537	155	410	410
