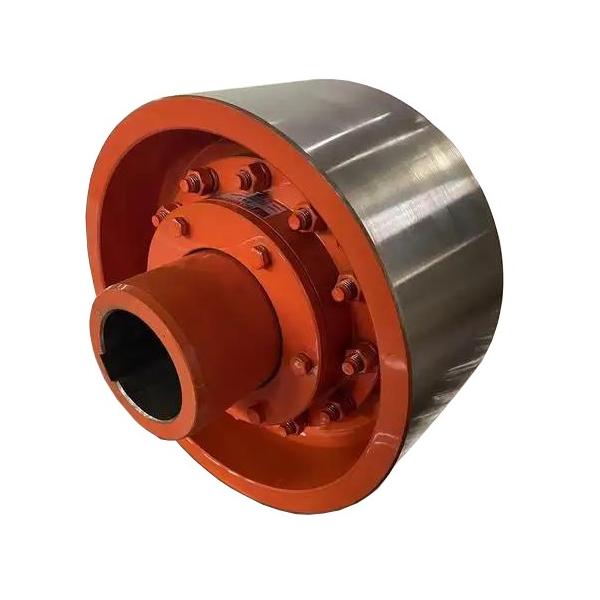

Brake wheel coupling

A Brake Wheel Coupling is a type of couplings used in mechanical drive systems, specifically designed to connect two shafts and allow braking action on one of the shafts. It typically consists of two main components: a brake wheel connected to the driving shaft and a couplings part connected to the driven shaft.

Brake Wheel Coupling Main Features:

1. Structure: The structure of a brake wheel couplings generally includes a brake wheel and a coupling. The brake wheel usually has multiple brake bands or pads, which can be operated by a braking system to reduce speed or stop the shaft’s rotation.
2. Working Principle: When in operation, the coupling transmits power to the driven shaft, while the brake wheel can apply braking force to the driving shaft when needed, slowing down or halting its rotation.
3. Applications: This couplings type is typically used in systems that require speed control or emergency stop functionality. For instance, it is commonly found in cranes, conveyors, elevators, and other heavy machinery, where it effectively provides stopping or decelerating capabilities.
4. Design: The design of the brake wheel coupling integrates both torque transmission and braking functionality, ensuring that the coupling not only transmits power efficiently but also provides reliable braking performance.

Advantages:

• Braking Function: The brake wheel couplings can provide immediate braking action, making it ideal for applications requiring rapid stopping or deceleration.
• Integrated Design: By combining the braking and coupling functions, it saves space and reduces installation costs.
• High Load Capacity: Brake wheel couplings are typically capable of handling high torque and heavy loads, making them suitable for heavy-duty machinery.

Disadvantages:

• Wear and Tear: The brake wheel and brake pads can experience wear over time, requiring regular replacement.
• Noise Issues: Braking may generate noise, especially under high-load conditions.

Overall, the brake wheel couplings is a couplings that both transmits torque and provides braking functionality. It is widely used in equipment that requires precise control over rotation, particularly in heavy machinery and high-load applications.
